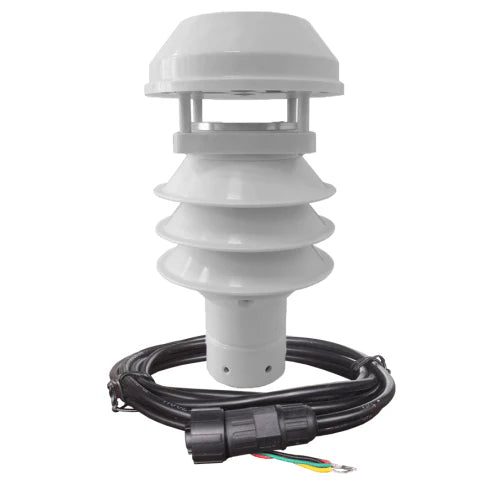

This is an ultrasonic weather station integrated with multiple high accuracy sensors that measure wind speed, wind direction, temperature, humidity, air pressure, precipitation, solar radiation, and luminance built to withstand harsh environments.
It is made with a robust, high strength construction design to withstand installation and use with no fear of the damage commonly experienced with more fragile cups/vane weather station. Ideal for applications that demand economic weather sensing. Without the need for expensive on-site calibration or maintenance and with a corrosion free exterior, maintenance free, quick and easy to install.
Windspeed:
- Range: 0 - 70m/s
- Accuracy: +/- 3%
- Resolution: 0.1 m/s
Wind direction:
- Range: 0 to 359 degrees
- Accuracy: +/- 3 degrees
- Resolution: 1
Air Temperature:
- Range: -40 to +80 C
- Accuracy: +/- 0.2
- Resolution: 0.1 C
Humidity:
- Range: 0-100%
- Accuracy: +/- 0.2
- Resolution: 0.1
Air pressure:
- Range: 150 - 1020hPa
- Accuracy: +/- 1 hPa
- Resolution: 0.1hPa
Precipitation:
- Range: 0 to 100mm/hr
- Identifiable Type: Rain/Snow
- Resolution: 0.01mm
Solar Radiation:
- Range: 0 to 1750 W/m2
- Accuracy: +/- 5%
- Resolution: 1 W/m2
Luminance:
- Range: 0 to 20 KLux
- Accuracy: +/- 5%
- Resolution: 1 Lux
General:
- Signal Output: RS232/RS485
- Power Supply: VDC:12V-24V
- Data Output: 1 per second(adjustable)
- Power Consumption: less than 3W (with heating: 6W)
- Material of Body: ABS
- Communication Protocol: Modbus
