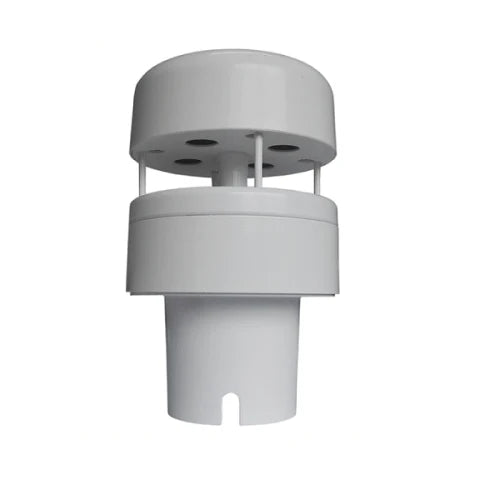

This Ultrasonic 2D Anemometer is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction based on principle of TOF(time of flight) of ultrasonic sound wave.
Low power chip make its power consumption low to 0.2W. By using ABS shell allows a lighter weight is lighter and more stable structure.
Features:
- Extremely low power consumption (0.2W), suitable for solar-powered weather stations
- No moving or wearing parts
- Low power design supports battery-operated data loggers.
- Using engineering plastic or aluminum alloy shell make it lighter
Windspeed:
- Range: 0 - 40m/s
- Accuracy: +/- 5%
- Resolution: 0.1 m/s
Wind direction:
- Range: 0 to 359 degrees
- Accuracy: +/- 3 degrees
- Resolution: 1
Sensor:
- Digital output: RS485, RS232, SDI-12
- Baud Rate: 4800-19200
- Communication protocol: ModBus-RTU?NMEA-0183?ASCII - Protection Grade: IP65
- Operating Temperature: -40 C to +60 C Operating Humidity
- Operating humidity: 0-100%
- Operating Voltage: 3-30VDC; 18mA at 12V
- Dimension/Weight: ABS: 82 x 108mm, 0.28kg, Aluminum alloy, 82 x 125mm, 0.38kg
- Color of Body: Black or White - Material: ABS or aluminum alloy
